One Locating Face Controlled Three Parts

A technical analysis of overconstrained mechanical joints where sharing a single datum plane across multiple independent components created localized warping and tolerance interference.

Prime Mechanical Inquiry

“What geometric, fastener, or datum condition must remain true for this joint to assemble without conflict?”

Interface Parameters

V-2026.8
Datum Type:
Shared Coplanar Plane A
Tool Clearance:
16.5 mm Radial Envelope
Assembly Vector:
Normal +Z Face Contact
Interface Status:
Decoupled & Verified
Jump to Full Breakdown

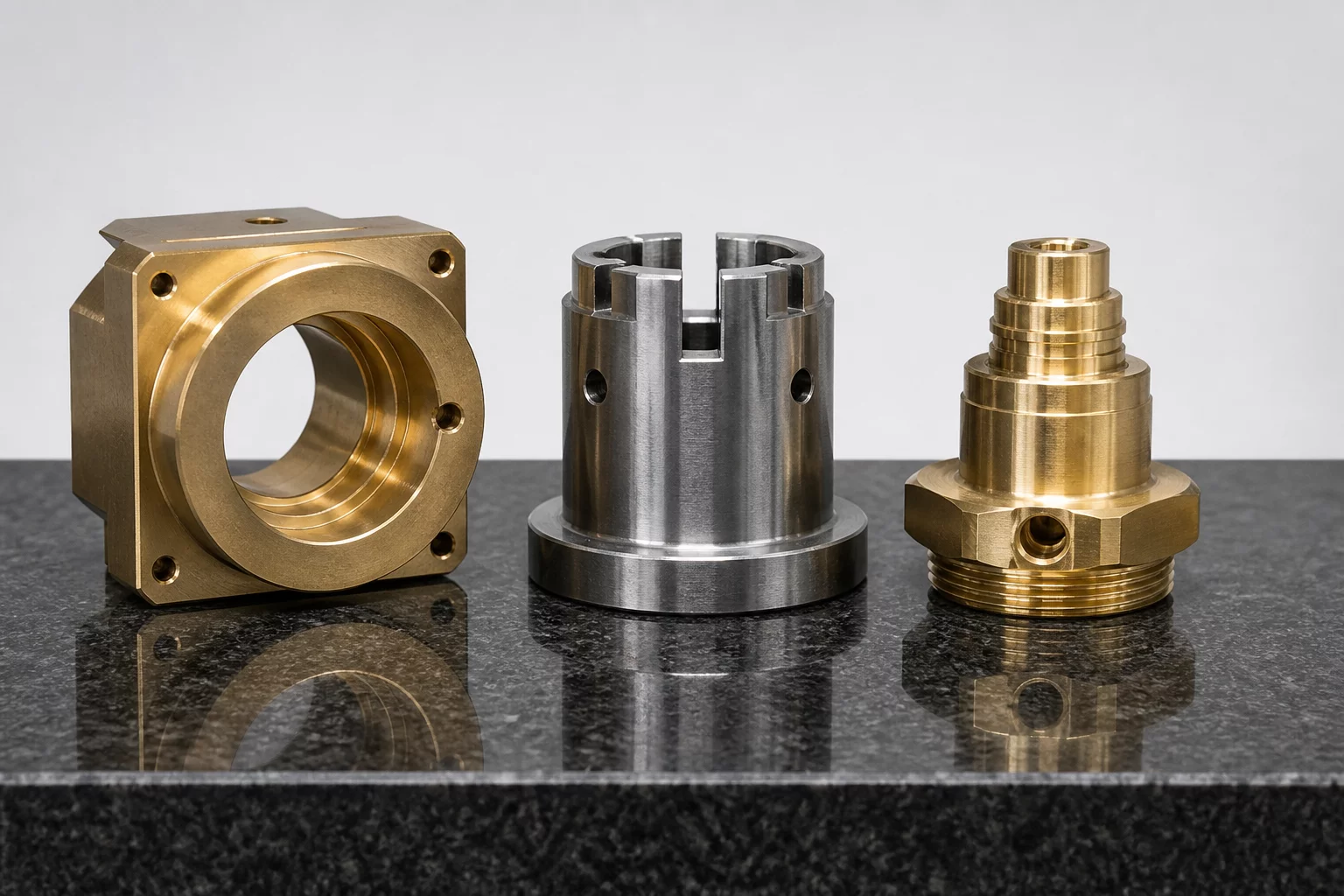

Three mechanical components aligning on a shared locating face
Primary Interface Section CAD View
Cross-section alignment model Interface Reason Repository #MB-03-8824

Root Interface Condition Analysis

In compact mechanical assemblies, engineers frequently rely on a single continuous machined datum face to seat multiple distinct components. In this specific chassis assembly, an optical sensor bracket, an idler pivot arm, and a sheet-metal guide plate were all positioned flush against one long milled reference surface. While CAD geometry exhibited ideal mathematical planarity, real-world manufacturing tolerances told a different story. Torquing the heavy-duty sheet-metal plate induced localized chassis stress that warped the shared surface by 0.08 mm. This deflection propagated directly beneath the adjacent optical sensor and pivot arm, destroying critical bore concentricity.

Intended Nominal Pathway

All three components seat simultaneously flush against the single continuous datum face with uniform contact pressure, maintaining parallel optical axes and friction-free pivot rotation.

Actual Assembly Conflict

Clamping torque from the structural bracket warped the chassis datum plane, tilting the optical sensor beyond acceptable beam limits and causing the pivot pin to bind inside its bushing.

Dimensional & Tolerance Interplay

The core fault stemmed from datum cross-coupling. By treating three functionally disparate parts as users of an undivided primary datum plane, manufacturing deviations in the sheet-metal stamping directly affected the sensitive optical bracket. The resolution involved breaking the shared continuous plane into three isolated, stepped landing pads machined at discrete offsets. This isolated clamping loads, provided individual diamond-pin locating features, and ensured that structural flexure in one subsystem could not influence neighboring sub-assemblies.

Technical Verification Modules

Select a perspective below to inspect the interface solution details.

Datum & Locating Surface Controls

The continuous milled plane was redesigned into three distinct raised pads. Each pad features an independent flatness tolerance of 0.015 mm and dedicated pin locators to prevent cross-component strain transmission.

  • Primary locating constraint: Plane A-1 (Sensor Base Isolated Pad)
  • Secondary pin locator: Feature B-2 (Diamond Locating Pin)
  • Rotational orientation lock: Slot C-1 (Torque Relief Slot)
